Big 3d Printer 2000mm For Tpu Pla Abs CF 3d printing for industrial use
- Dowell
- China, Luoyang
- 7 days
- 1000 set/month
Luoyang Dowell Electronic Technology Co., Ltd is the first batch enterprises who specializing in the developing and manufacturing of 3D printer in China. The brand "Dowell" has now become one of the largest 3D printer big size manufacturers in central China.
The annual sales volume exceeds over 3,000 sets under the annual production capacity of 15,000 sets.
Our products has achieved over 10 patents,certified by CE, FCC Organization, and sold to over 60 countries.
Dowell Large FDM Industrial 3d printing machine DM Series 3d printer fdm 3d printer large scale 3d printer industrial 3d printing 3d printer machine
If you are tired of outsourcing or inefficient production, then our easy-to-use DM Series printers can save you time and money.
Packed with our latest technology, it is as easy to use as it is powerful, offering the most cost-effective way for disruptive businesses to adopt 3D printing.
Discover the Dowell 3D printers that will streamline your workflow and deliver the quality results you need.
| Product Description | |
| Model | DM10-20 |
| Printing size | 1000*1000*2000mm |
| Extruder | Single （dual extruder could be customized） |
| Frame | 40mm aluminum section |
| Movement of XY axis | High precision linear rail |
| Movement of bed | 4 X screw rods & 4 X roller rods |
| Printing bed | 6mm tempered glass |
| Bed temperature | 0-100℃ (optional 150℃ ) |
| Nozzle size | 0.4, 0.6, 0.8, 1.0mm |
| Nozzle temperature | 0-420℃ |
| Positional accuracy | 0.02mm |
| Layer accuracy | 0.04-0.6mm |
| Slicing software | Dowell3d / Cura / or other similar software |
| Input format | STL/OBJ/Gcode/JPG |
| Filament diameter | 1.75mm |
| Connection | U disk/SD Card |
| Standard functions | 3D/BL toch auto leveling, filament sensor, auto resume from power off, auto power off, nozzle anti-collision |
| Customization Options | 1. Medium extrusion flow rate extruder 2. Dual extruder 3. Dual feeder one nozzle 4. Linux operating system 5. X,Y module movement 6. Constant temperature enclosure 7. Pellet extruder 8. Printing size |
Large printing area, accept custom made to meet your different printing needs,
Making your printing work easy and fun.
420°c High temperature nozzle
Dowell self research nozzle temperature can reach 420°c, which can melt almost kinds of filament.
Like PLA, PETG, ABS, ASA, NYLON, Carbon Fiber, PMMA, PP, PC, PVA,PEEK, TPU, PBT, etc...

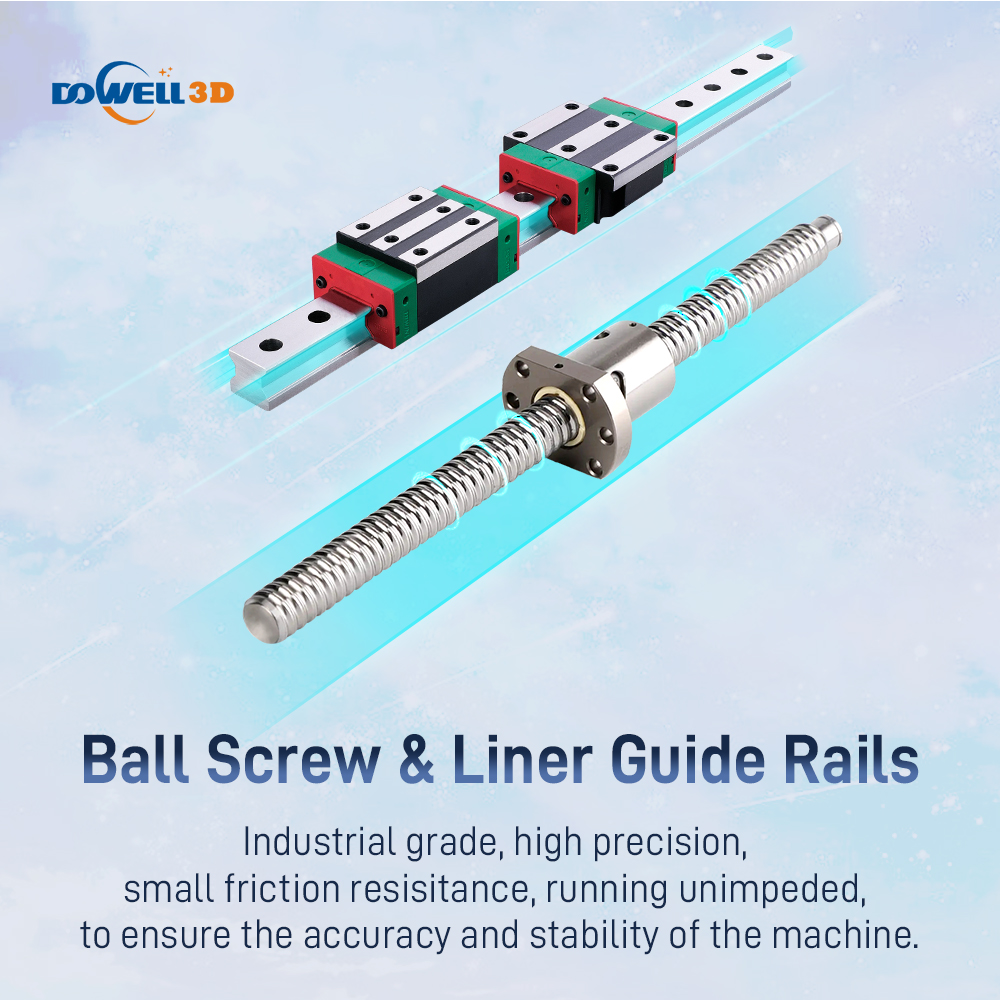

Linear guide rail, ball screw, alumium alloy body and tempered platform are used to ensure more stable printing.
6mm tempered glass platform
Whole bed heated by silicon rubber heater evenly, precise control temperature 0-100 degrees.
Super load capacity more than hundreds kilograms
fdm 3d printer large scale 3d printer industrial 3d printer 3d printer machine
High sensitive 3D TOUCH 64 point measuring to achieve ture auto leveling.
4 corner detections adjusted to base level , 8*8=64 points on the whole bed auto detection platform flatness,
through the independent 4 screws rods adjust to precise leveling.
FDM 3D PRINTER LARGE SIZE 3D PRINTING MACHINE INDUSTRIAL 1000MM 3D PRINTER an
The anti-collison system will automatically rebound when the nozzle hits the plastform or the printed model,
Never worry damage the platform and print.

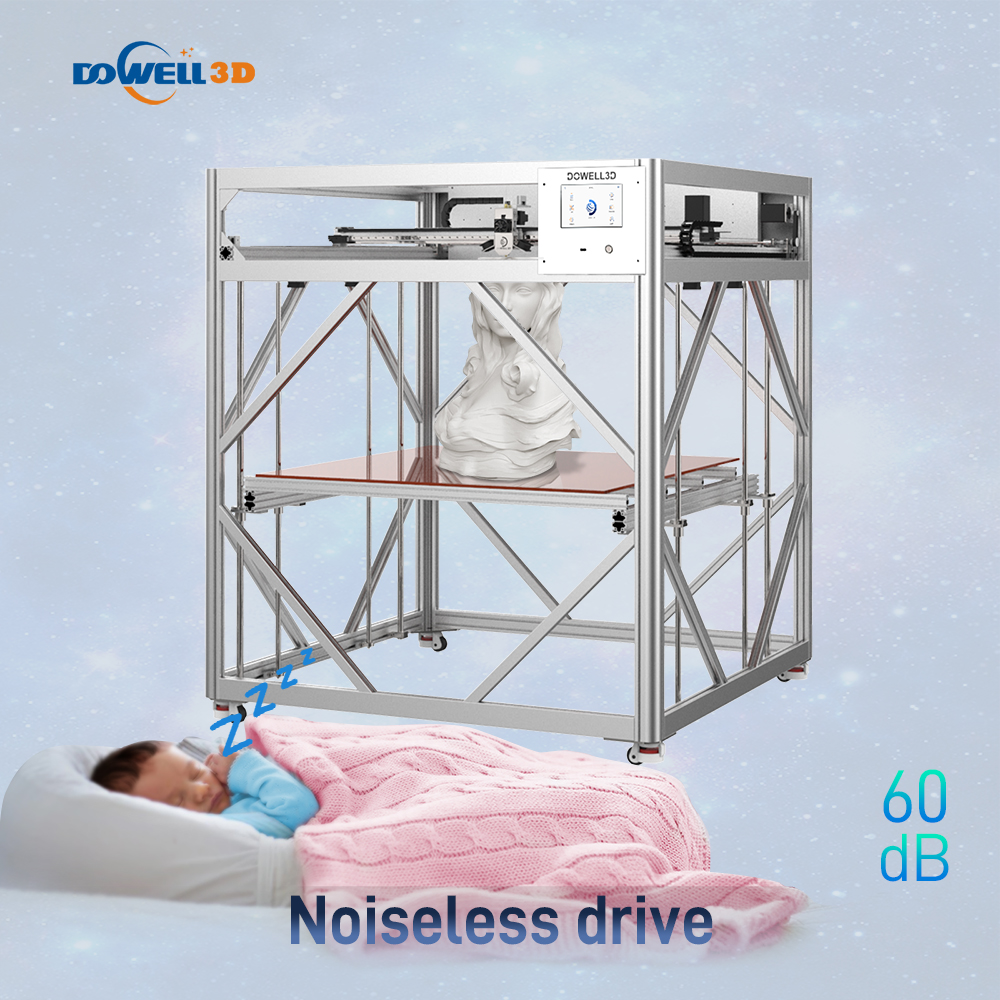

Strong motor & Noiseless Drive
It has both the advantages of silence and high efficiency.
Controlling the working noise at about 60dB while ensuring the high efficiency of the drive.

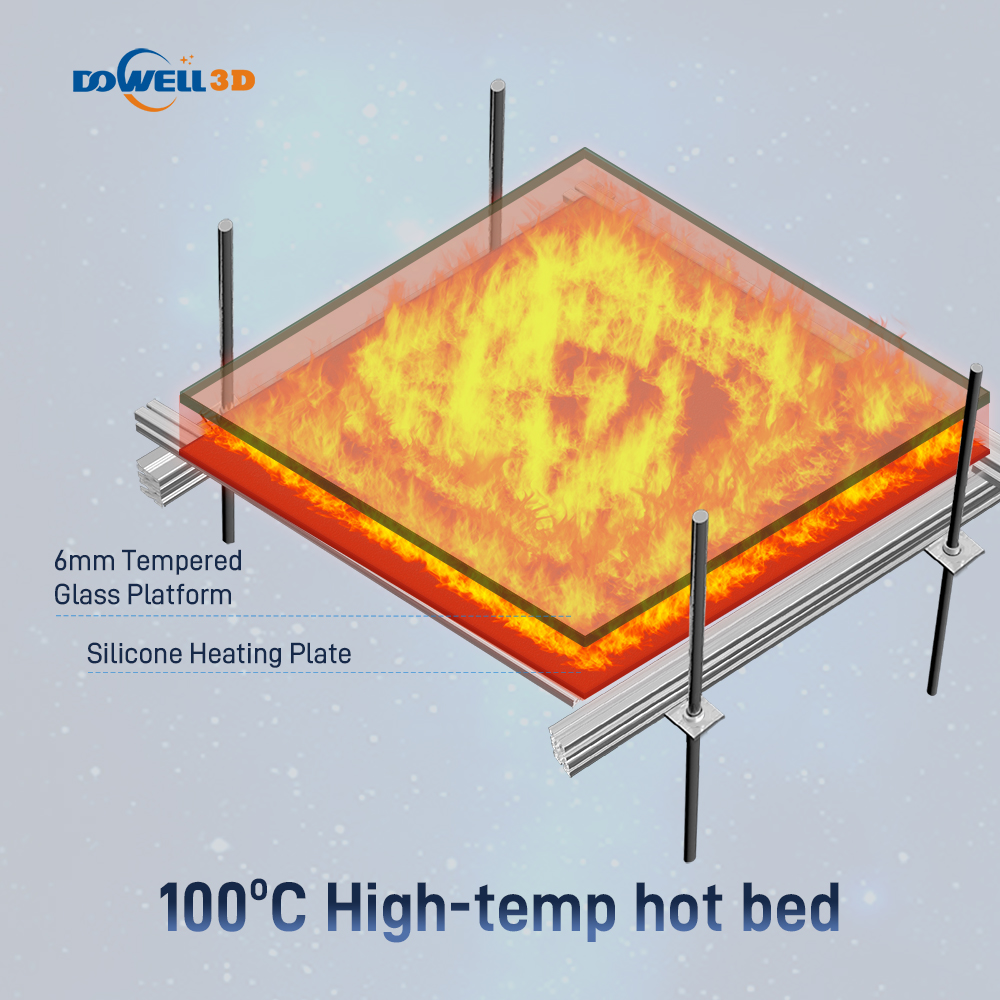

6mm tempered glass platform & High temp hot bed
Whole bed heated by silicon rubber heater evenly, precise control temperature 0-100 degrees.
Super load capacity more than hundreds kilograms
Tank chain & Super flexible wire
The tank chain is equipped with special super flexible wires.
Rotate freely, stable and accurately, low noise, clean and beautiful lines, wear-resistant can withstand thousands of times bending.
Smart Filament sensor & Auto resume printing from power off
Automatically detect material breakage, issue a prompt tone and stop working,
Save the work process after power failure, and continue to print continuously after power off.
fdm 3d printer large scale 3d printer industrial 3d printer 3d printer machine
7-Inch Large Screen, Simple operation
The newly upgraded 7 inch full color touch capacitive screen has abundant functions at a glance, is responsive, and not easy to touch by mistake.
Casters with high bearing capacity
4 bracket casters, with strong bearing capacity and convenient move.
A variety of printing sizes are available, we also provide customization options.
Contact us create your own 3d printer.
fdm 3d printer large scale 3d printer industrial 3d printer 3d printer machine
We also provide customization options
A: Higher flow extruder
B: Constant temp enclosure
C: Pellet extruder
D: Dual feeder one nozzle
E: Dual extruder
F: Module movement
G: Printing size
H: Linux System
Some feedback from customers, we also have many customer cases want share with you.
Contact us to learn more details.
We provide 1 year warranty and life-long time professional after-sale service.
WHY YOU CAN TRUST DOWELL 3D
CE & FCC CERTIFICATE
9 YEARS RICH EXPERIENCE ON 3D PRINTING
PROFESSIONAL R&D TEAM
DIRECTLY FACTORY ( COST SAVING)
7-10 DAYS FAST DELIVERY
LIFE-LONG TIME AFTER SALE SERVICE
